Introduction

PostgreSQL-to-PostgreSQL replication at scale requires tools that can fully leverage modern cloud infrastructure and network capabilities. FastTransfer is a commercial data migration tool designed to maximize throughput through advanced parallelization. This post demonstrates FastTransfer’s performance transferring 113GB of TPC-H data between OVH c3-256 instances over a 20 Gbit/s network.

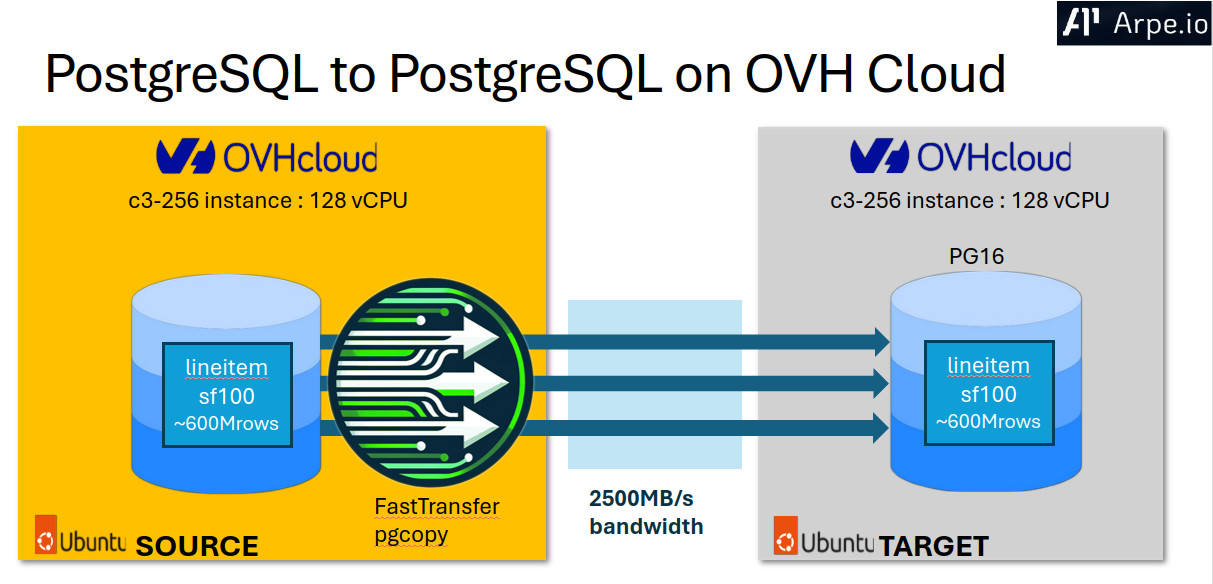

Infrastructure Setup

  • OVH Instances: c3-256 (256GB RAM, 128 vCores @2.3GHz, 400GB NVMe)
  • Network: 20 Gbit/s vrack, Paris datacenter (eu-west-par-c)
  • OS: Ubuntu 24
  • PostgreSQL: Version 16
  • Dataset: TPC-H SF100 lineitem table (~600M rows, ~113GB)

PostgreSQL Configuration

Optimized for bulk operations: 80GB shared_buffers, 128 parallel workers, minimal WAL logging. Target tables: UNLOGGED, no primary keys.

Target Database Disk Performance

The target PostgreSQL instance uses the native 400GB NVMe instance disk (not block storage) for database storage. This provides excellent I/O performance crucial for high-speed data ingestion:

FIO Benchmark Command

fio --name=seqwrite --filename=/tmp/fio-test --rw=write \
    --bs=1M --size=8G --direct=1 --numjobs=1 --runtime=30 --group_reporting

Results

Sequential Write Performance (8GB test, 1MB blocks):
- Throughput: 1,260 MB/s (1.26 GB/s)
- IOPS: 1,259
- Average latency: 787 microseconds
- 95th percentile: 1.5ms
- 99th percentile: 2.3ms

The native NVMe storage delivers consistent low-latency writes with over 1.2 GB/s throughput, ensuring disk I/O is not a bottleneck for the PostgreSQL COPY operations even at peak network transfer rates.

Network Performance

The private network connection between source and target instances was tested using iperf3 to verify bandwidth capacity:

iperf3 Benchmark Command

# On target instance
iperf3 -s

# On source instance
iperf3 -c 10.10.0.50 -P 64 -t 30

Results

Network Throughput Test (64 parallel streams, 30 seconds):
- Average throughput: 20.5 Gbit/s
- Total data transferred: 71.7 GB
- Consistent performance across all streams

The network delivers full line-rate performance, slightly exceeding the nominal 20 Gbit/s specification. With 64 parallel TCP streams, the network provides ample bandwidth for FastTransfer’s parallel data transfer operations.

FastTransfer Command

FastTransfer version: 0.13.12

./FastTransfer \
  --sourceconnectiontype "pgcopy" \
  --sourceconnectstring "Host=localhost;Port=5432;Database=tpch;Trust Server Certificate=True;Application Name=FastTransfer;Maximum Pool Size=150;Timeout=15;Command Timeout=10800;Username=fasttransfer;Password=******" \
  --sourceschema "tpch_100" --sourcetable "lineitem" \
  --targetconnectiontype "pgcopy" \
  --targetconnectstring "Host=10.10.0.50;Port=5432;Database=tpch;Trust Server Certificate=True;Application Name=FastTransfer;Maximum Pool Size=150;Timeout=15;Command Timeout=10800;Username=fasttransfer;Password=******" \
  --targetschema "tpch_100" --targettable "lineitem" \
  --loadmode "Truncate" --method "Ctid" --degree 128

Note the Maximum Pool Size=150 in the connection string, increased from the default 100 to support 128 parallel threads.

Performance Results

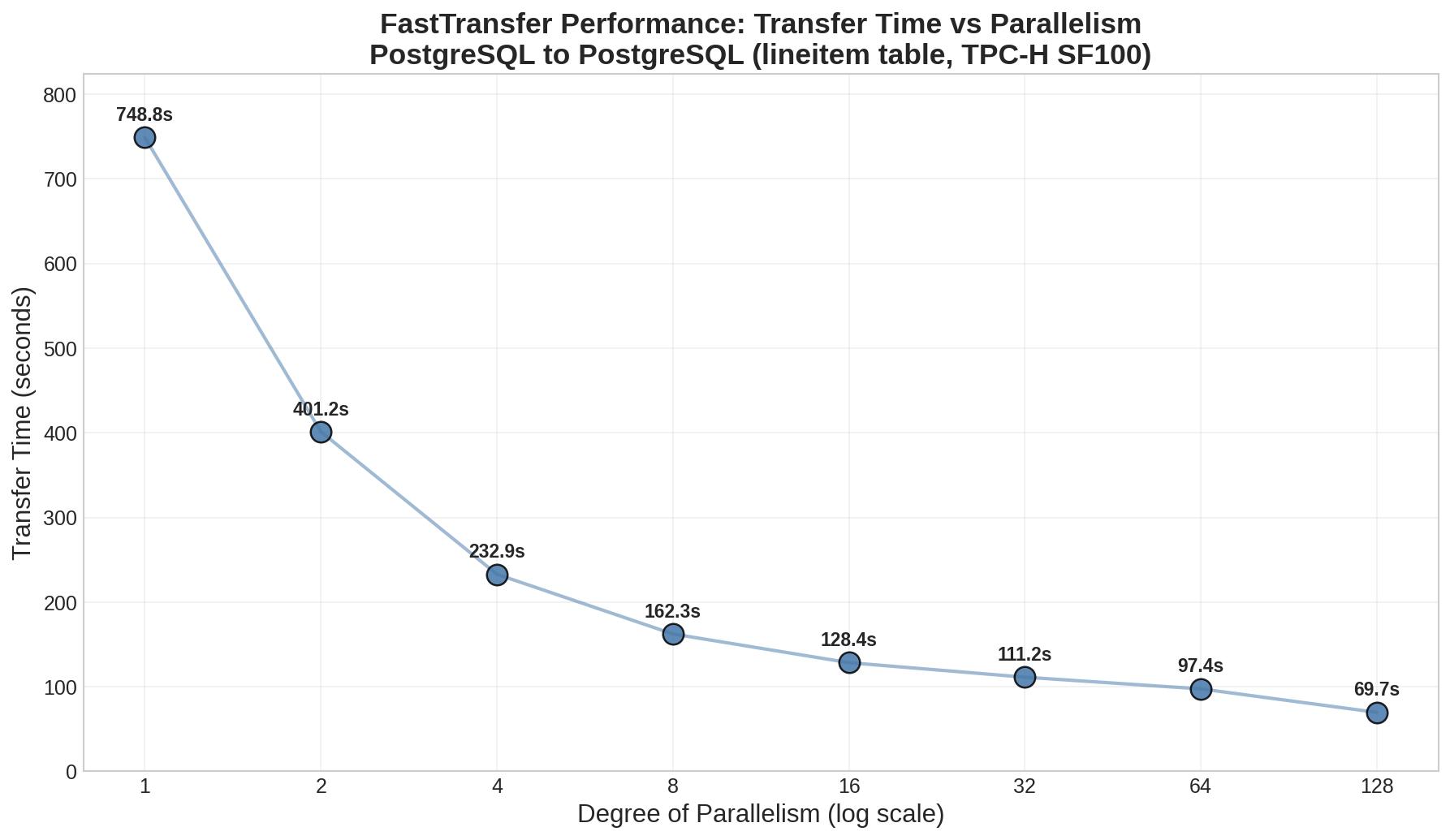

Transfer Time

Transfer Time.

Transfer time: 749s (single thread) → 70s (128 threads)

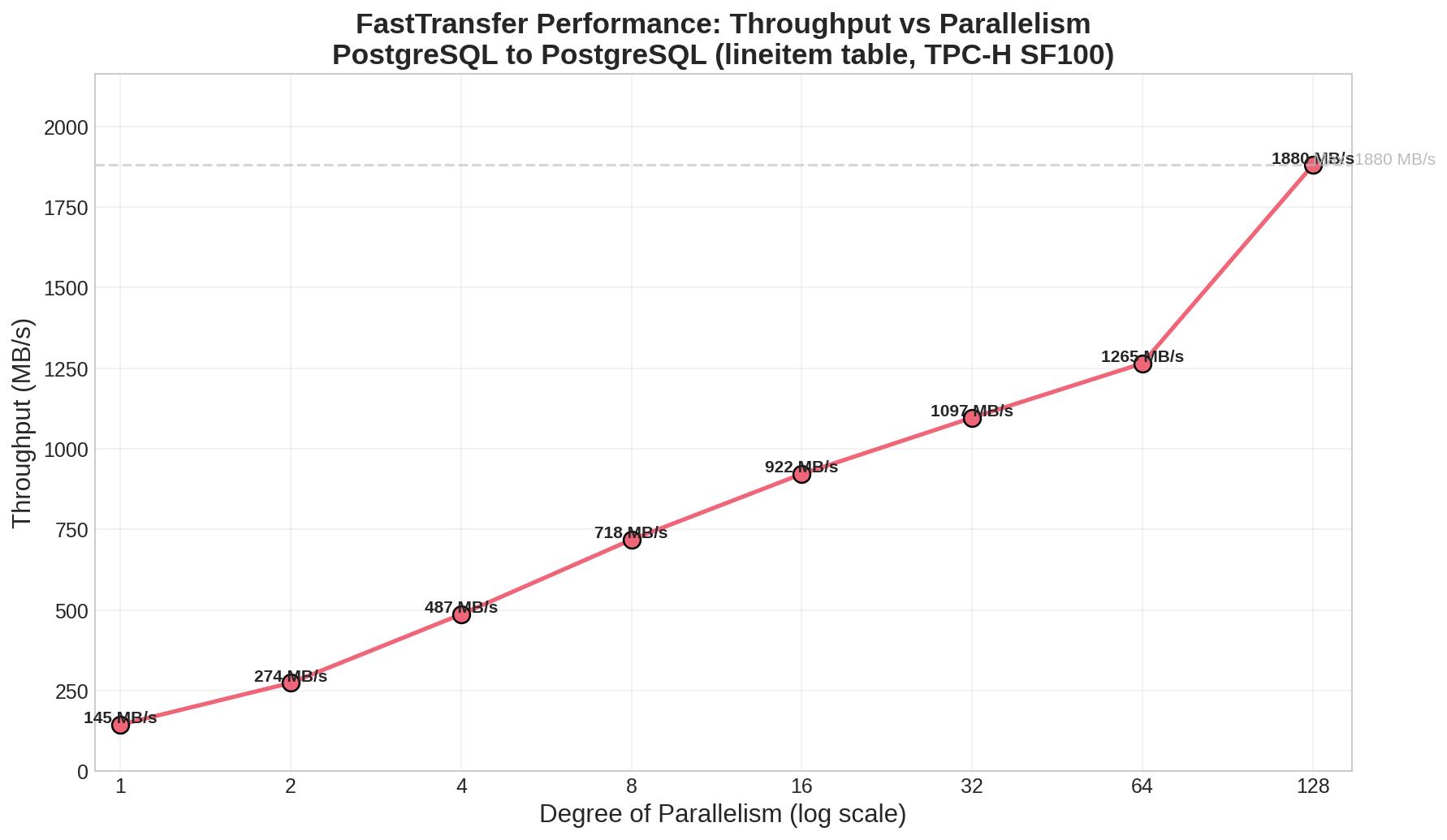

Throughput Scaling

Throughput.

Throughput: 145 MB/s → 1,880 MB/s (75% of 20 Gbit/s link capacity)

Results Summary

  • 113GB transferred in 70 seconds (degree=128)
  • 1.88 GB/s peak throughput achieved
  • 10.7x speedup with 128 parallel connections
  • Optimal range: 32-64 threads for best efficiency/performance balance

Conclusion

FastTransfer achieves 1.88 GB/s throughput when transferring 113GB of data between PostgreSQL instances, utilizing 75% of the available 20 Gbit/s network capacity. The 10.7x speedup with 128 parallel connections demonstrates excellent scalability on OVH’s high-end infrastructure. These results confirm that FastTransfer can effectively saturate modern cloud networking for PostgreSQL-to-PostgreSQL migrations.

About FastTransfer

FastTransfer is a commercial high-performance data migration tool developed by arpe.io. It provides parallel data transfer capabilities across multiple database platforms including PostgreSQL, MySQL, Oracle, SQL Server, ClickHouse, and DuckDB.

Key Features:

  • Advanced parallelization strategies for optimal performance
  • Cross-platform compatibility with major databases
  • Flexible configuration for various data migration scenarios
  • Production-ready with comprehensive logging and monitoring

For licensing information, support options, and to request a trial, visit the official documentation.
